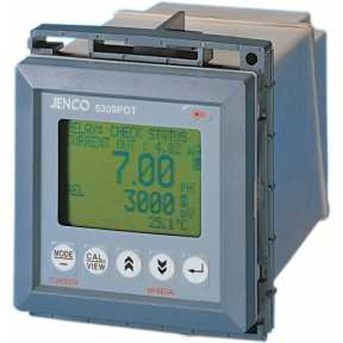

JENCO pH, ORP, Temperature In-line Analyzer 6039POT

Description pH & ORP analyzer, 1/ 4 DIN panel mount IP-65 case. Features 2 pH and 2 ORP fully programmable relays and one for temperature. RS-485 interface, password protected with individual ID' s. 4-20 mA analog output is fully programmable, assignable & reversible. Graphical display. Tinned lead connectors. CE Approved. * Ph/ ORP/ temp. measurement & control * Display pH electrode efficiency * Reversible & isolated 4~ 20ma output * RS-485 output * Bumpless calibration * Graphic LCD dispaly, 128 x 64with backlight * Membrane switch with audio feedback * Auto temp. compensation * High 50/ 60 hz noise rejection * Pipe/ wall/ panel mounting * 1/ 4 DIN watertight enclosure * One programmable relay for temp. * CE approved * Programmable linear/ ORP current output or programmable linear/ anti-logarithmic current output Specifications pH Range : -2.00 to 16.00 Resolution : 0.01pH Accuracy : 0.1% ± 1 LSD ORP( Absolute) Range : -2500 to 2500mV Resolution : 1mV Accuracy : ± 0.1% rdg ± 1mV ORP( Relative) Range : -6499 to 6499mV Resolution : 1mV Accuracy : ± 0.1% rdg ± 1mV Temp. Range : -10.0 to 120 ° C Resolution : 0.1° C Accuracy : ± 0.3° C pH * Temperature compensation range: -10.0 to 120.0 ° C * Buffer recognition: 4.01, 7, 10.01 / 4.00, 6.86, 9.18 * Buffer temperature range: 0 to 60.0 ° C * Electrode slope compensation: ± 30% of ideal slope * Electrode offset compensation: ± 100 mV * Input impedance: Greater than 10 exp( 13) ohms * Calibration auto end point sensing: Yes Output Relays * pH: 2programmable high or 2 low * ORP: 2programmable high or 2 low * Temperature: 1programmable high or 1 low * Control type: On/ off * Relay output ( resistive load only) : 5amps at 115 VAC 2.5 amps at 230 VAC * Relay set point hysteresis: User programmable Current Output * Type: Isolated 4 to 20 mA * Range: Selectable zero, & span * Accuracy: ± 0.02mA * Isolated voltage: 500 VDC * Maximum load: 500 w General * ATC sensor: Thermistor 10kiloohms at 25 c * Security protection: 4digit password * Keypad: Audio feedbackup * Communication: RS-485 * Pre-amplifier voltage: ± 5 VDC, 20mA max output * Power source: 115/ 230 VAC, 50/ 60hz * Dimensions: 1/ 4 DIN, depth 148mm * Weight: 950 gm
